设备年份新，库存12台，可租可售，有意向的联系13776054406电话微信同号。

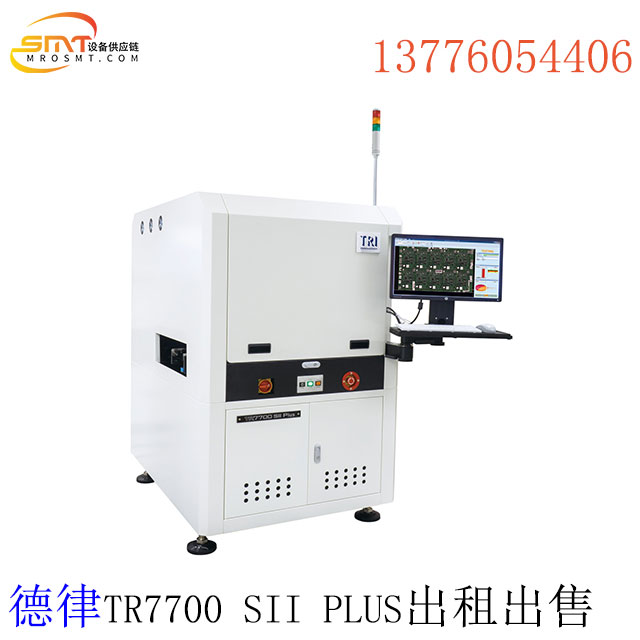

TR7700 SII Plus结合了流线型的外观设计与精度高的摄像系统和TRI的多相位光源，可捕捉到全尺寸PCB板的细致影像。新一代检测软件结合了优良的缺陷检测和简易型自动CAD编程，为一个可靠且经济型的AOI检测解决方案。

产品特性：

• 具弹性的高速动态或走停式取像AOI

• 智能化简易编程介面

• 智能自动输送带可快速切换不同产品

• 具备多件与异物检测功能

• 6 µm或10 µm或15µm光学分辨率

产品规格：

Optical System

Imaging Method Dynamic Imaging or Stop-and-Go on select configurations

Top Camera 4 or 9 or 12 Mpix high speed color camera (factory setting)

Angle Camera N/A

Imaging Resolution 6 µm, 10 µm, 15 µm (factory setting)

Lighting Multi-phase RGB+W LED

3D Technology N/A

Max. 3D Range N/A

Inspection Performance

Imaging Speed 4 Mpix@ 10 µm Dynamic Imaging: 60 cm²/sec

4 Mpix@ 15 µm Dynamic Imaging: 120 cm²/sec

9 Mpix@ 10 µm Dynamic Imaging: 72 cm²/sec

12 Mpix@ 6 µm Dynamic Imaging: 40 cm²/sec

4 Mpix@ 10 µm Stop-and-Go: 4.5 FOV/sec

4 Mpix@ 15 µm Stop-and-Go: 4.5 FOV/sec

Motion Table & Control

X-Axis Control Ballscrew + AC-servo controller

Y-Axis Control Ballscrew + AC-servo controller

Z-Axis Control N/A

X-Y Axis Resolution 1 µm

Board Handling

Max PCB Size TR7700 SII Plus@ 10 µm, 15 µm: 510 x 460 mm

TR7700 SII Plus@ 6 µm: 400 x 400 mm

TR7700 SII Plus DL@ 10 µm, 15 µm: 510 x 310 mm x 2 lanes, 510 x 590 mm x 1 lane

TR7700 SII Plus DL@ 6 µm: 400 x 310 mm x 2 lanes, 400 x 400 mm x 1 lane

PCB Thickness 0.6-5 mm

Max PCB Weight 3 kg

Top Clearance 10 µm, 15 µm: 25 mm [48 mm optional◎※]

6 µm: 25 mm

◎The air blow module does not apply to this option

※This option is only available for 4 Mpix camera.

Bottom Clearance 10 µm, 15 µm: 40 mm [100 mm optional]

6 µm: 40 mm

Edge Clearance 3 mm [5 mm optional]

Conveyor Inline

Height: 880 – 920 mm

* SMEMA Compatible

Inspection Functions

Component Missing

Tombstoning

Billboarding

Polarity

Rotation

Shift

Wrong Marking (OCV)

Defective

Upside Down

Extra Component

Foreign Material

Solder Excess Solder

Insufficient Solder

Bridging

Through-hole Pins

Lifted Lead

Golden Finger

Scratch/Contamination

Dimensions

WxDxH TR7700 SII Plus: 1000 x 1400 x 1650 mm

TR7700 SII Plus DL: 1000 x 1500 x 1650 mm

Note: not including signal tower, signal tower height 520 mm

Weight TR7700 SII Plus: 600 kg

TR7700 SII Plus DL: 650 kg
