产品特性：

 • 高精度五支镜头的多相AOI

 • 智能编程的GUI与离线编辑功能

 • 智能化自动输送带系统可减少进出板时间

 • 检测可靠，高精度，低误判

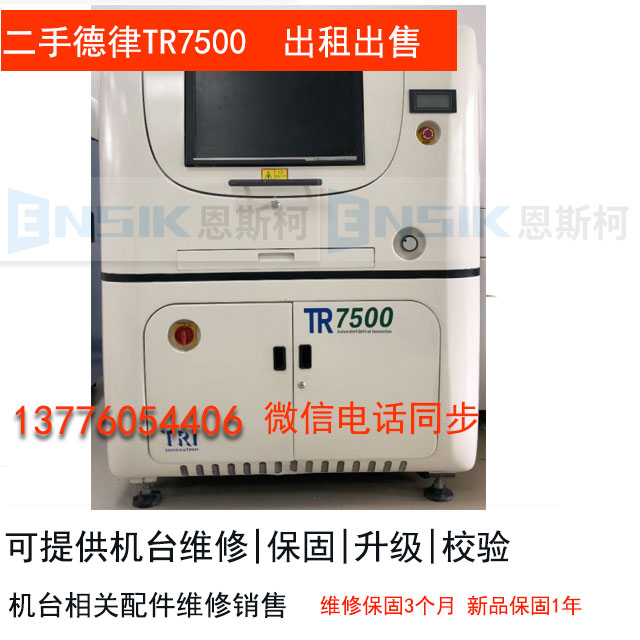

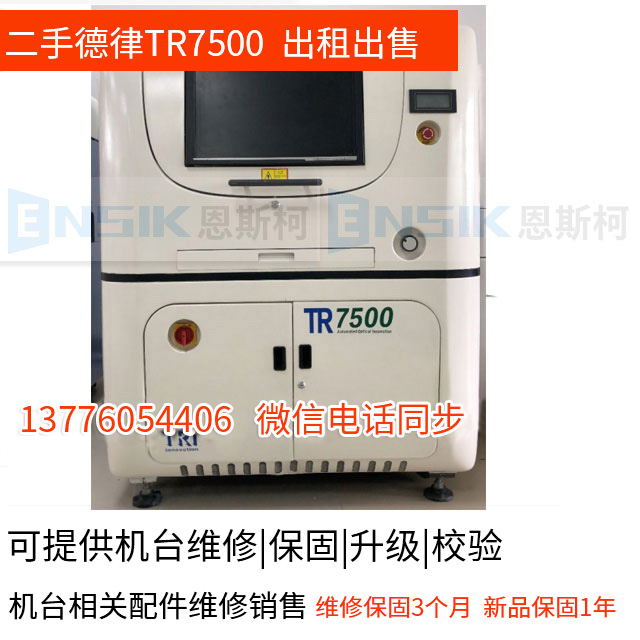

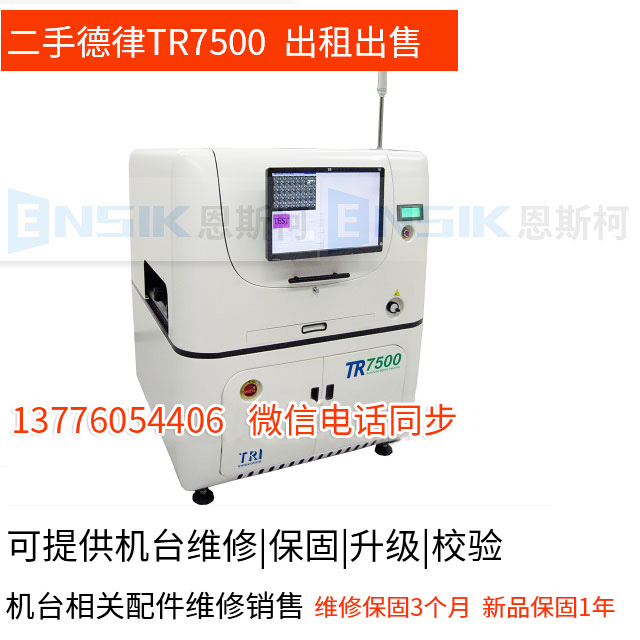

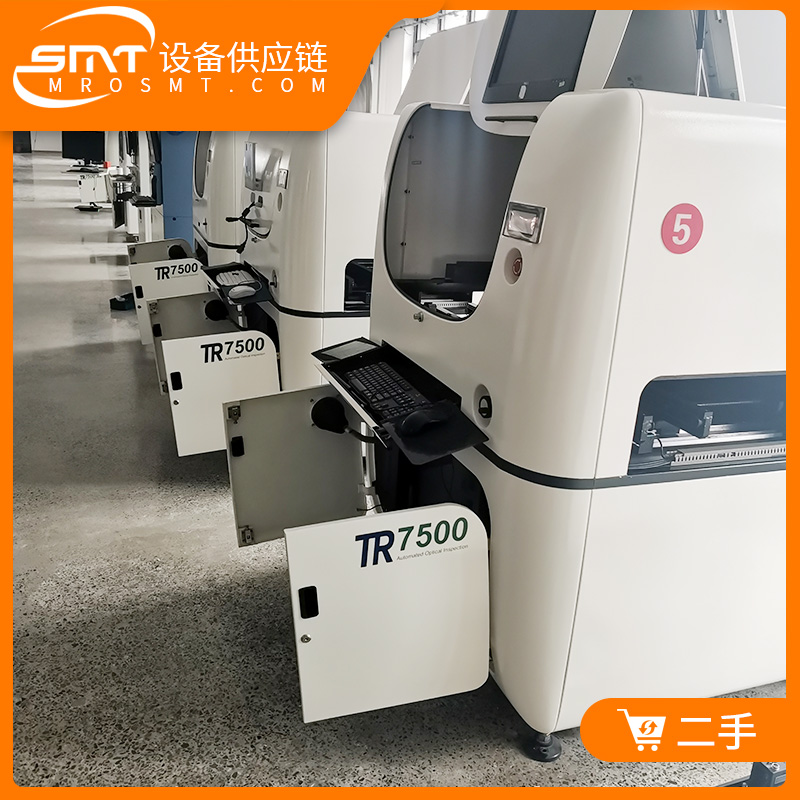

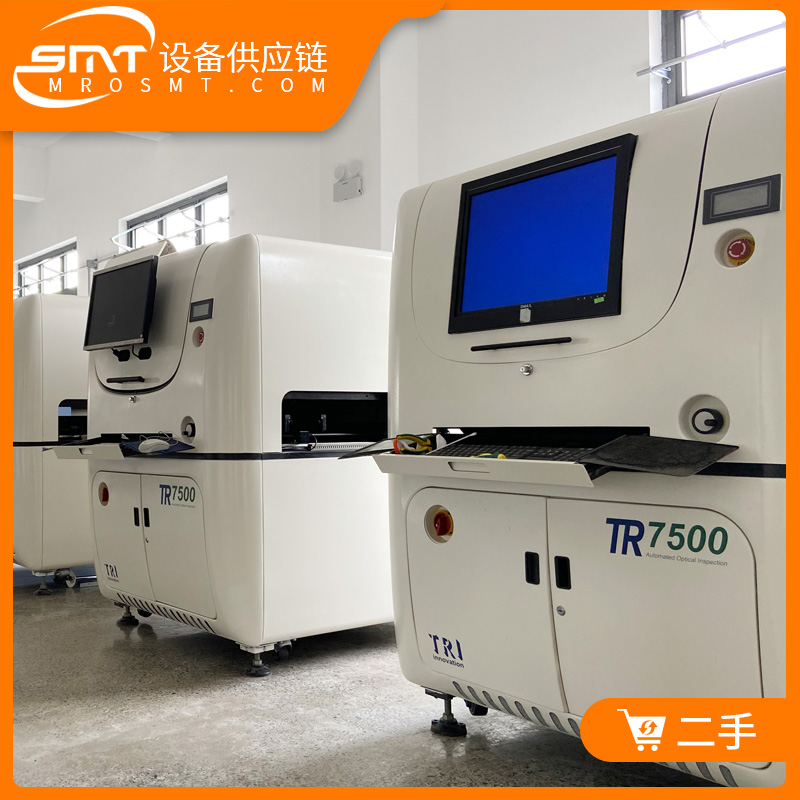

TR7500

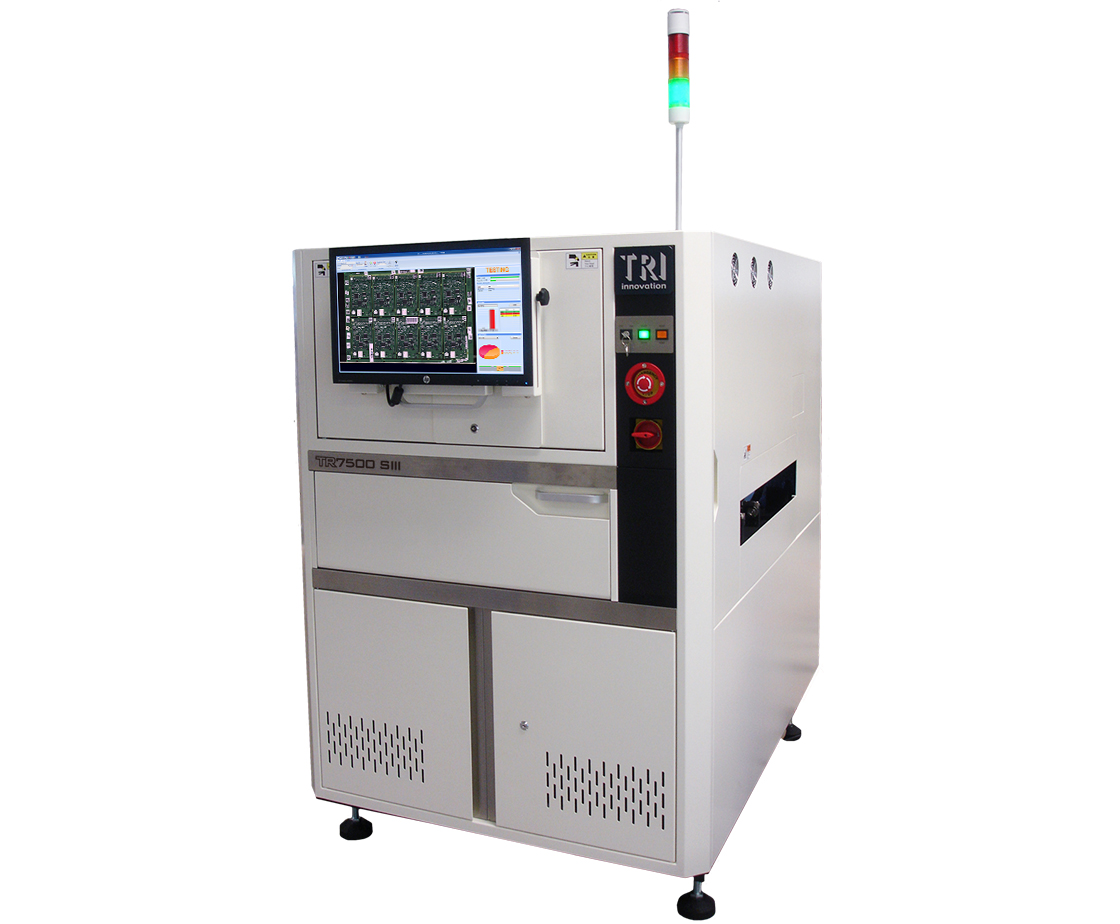

TR7500SIII

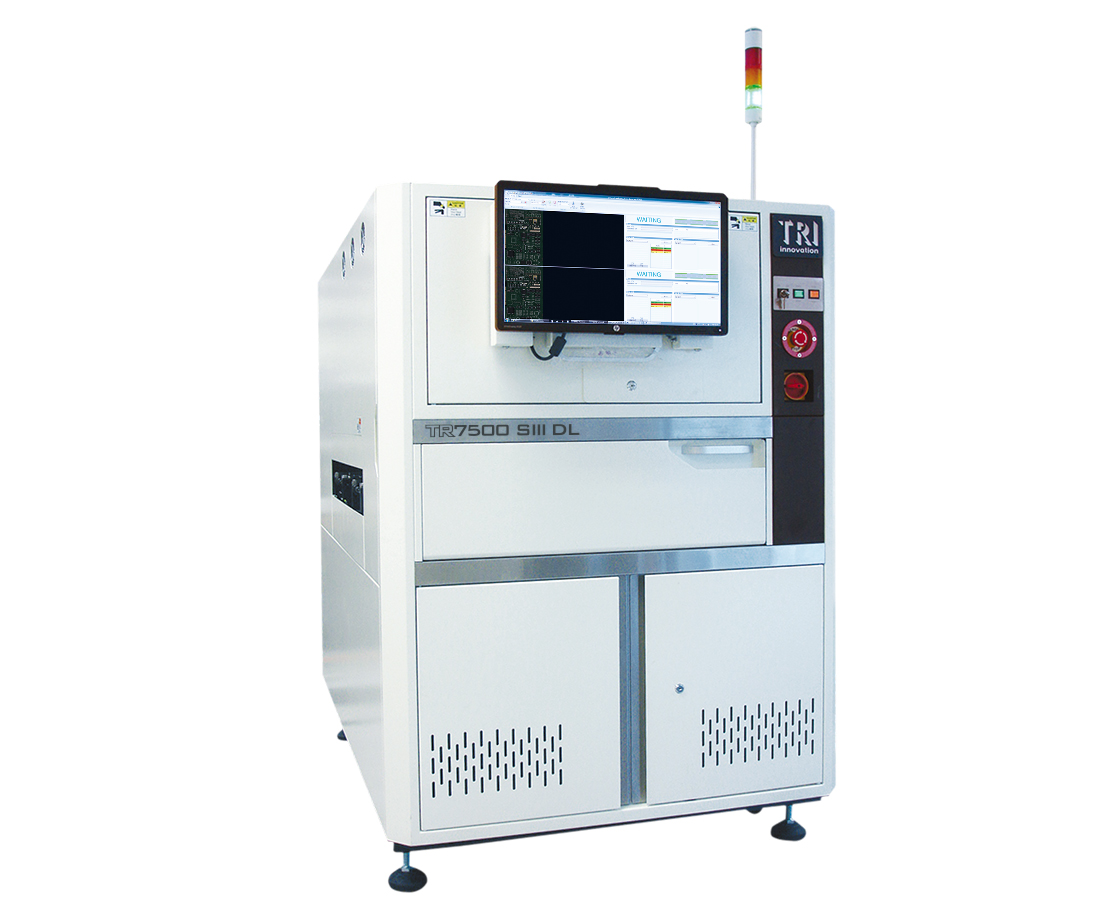

TR7500SIIIDL

产品规格：

Optical System

Imaging MethodDynamic Imaging

Top Camera4 Mpix

Angle Camera1.3 Mpix or 6.5 Mpix (factory setting)

Imaging Resolution10 µm, 15 µm (factory setting)

LightingMulti-phase RGB+W LED

3D TechnologySingle/Dual 3D laser sensors

Max. 3D Range20 mm (with 3D Laser Sensor upgrade optional)

Inspection Performance

Imaging Speed4 Mpix@ 10 µm 2D: 60 cm²/sec

4 Mpix@ 15 µm 2D: 120 cm²/sec

Motion Table & Control

X-Axis ControlBallscrew + AC-servo controller

Y-Axis ControlBallscrew + AC-servo controller

Z-Axis ControlN/A

X-Y Axis Resolution1 µm

Board Handling

Max PCB SizeTR7500 SIII: 510 x 460 mm

TR7500L SIII: 660 x 610 mm

TR7500 SIII DL: 510 x 310 mm x 2 lanes, 510 x 590 mm x 1 lane

PCB Thickness0.6-5 mm

Max PCB Weight3 kg

Top Clearance25 mm [48 mm optional]

Bottom Clearance40 mm

Edge Clearance3 mm [5 mm optional]

ConveyorInline

Height: 880 – 920 mm

* SMEMA Compatible

Inspection Functions

ComponentMissing

Tombstoning

Billboarding

Polarity

Rotation

Shift

Wrong Marking (OCV)

Defective

Upside Down

Extra Component

Foreign Material

Lifted Component

SolderExcess Solder

Insufficient Solder

Bridging

Through-hole Pins

Lifted Lead

Golden Finger

Scratch/Contamination

Dimensions

WxDxHTR7500 SIII: 1100 x 1670 x 1550 mm

TR7500L SIII: 1300 x 1630 x 1655 mm

TR7500 SIII DL: 1100 x 1770 x 1550 mm

Note: not including signal tower, signal tower height 520 mm

WeightTR7500 SIII: 1030 kg

TR7500L SIII: 1255 kg

TR7500 SIII DL: 1150 kg
